Product Description
Module performance
Module performance: The input voltage: 4.35-6 v (recommended voltage 5 v) Charge cut-off voltage: 4.2 V + / – 1% Maximum charging current output: 1000 ma The battery overcharge protection voltage: 4.28 V Battery overcharge lifting voltage: 4.00 V The battery discharge protection voltage: 3.0 V Battery discharge termination voltage: 3.2 V Battery: over-current protection current 3 a The board size: about 2.5 * 1.65 CM Light state: no load the light not bright, red light for recharging, is full of green light. PACKAGE INCLUDED: 1 X Modules

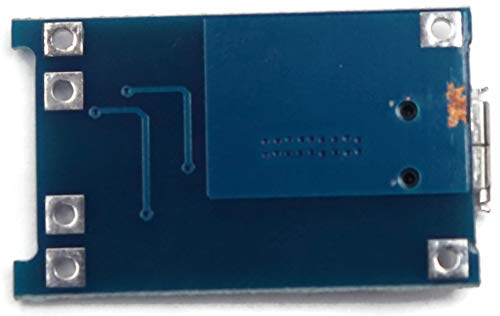

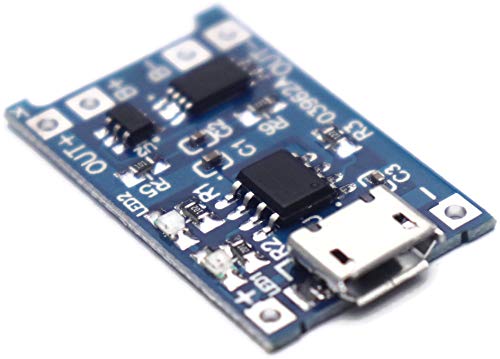

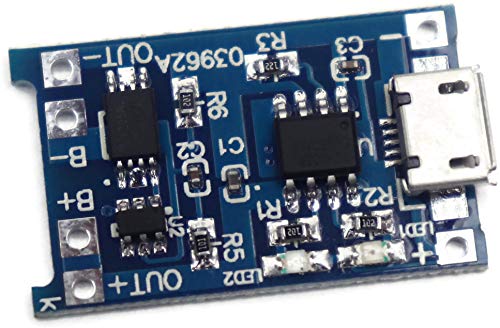

TP 4056 Simply connect
Charge your lithium battery with the TP4056 Battery Charging Module! Simply connect the ends of the battery to the BAT+ and BAT- terminal of the module and power the module with a 5V power supply from the micro USB port.
Module
the module will cut output power from the battery if the discharge rate exceeds 3A or if a short-circuit condition occurs. Soft-start protection limits inrush current Full-charge voltage: 4.2V
With Overcharge, Discharge, Over-Current Protection function, Battery Discharge Protection Voltage: 2.5V, Battery Over-Current Protection Current: 3A
With Micro USB socket at the input port, can directly use the phone charger as input to charge for lithium battery, and keep connection solder joint. Convenient to DIY.
After connecting the lithium battery to B+ and B-, join up 5V input, red light indicates on charge, green light indicates fully charged.
The charging current would be better 0.37 times than battery capacity. (eg. 1000mAH battery charging current is 400mA) Disconnect load while charging, OUT / B output positive and negative reverse connection will damage the module.
